Wash World Apex - pay station interface

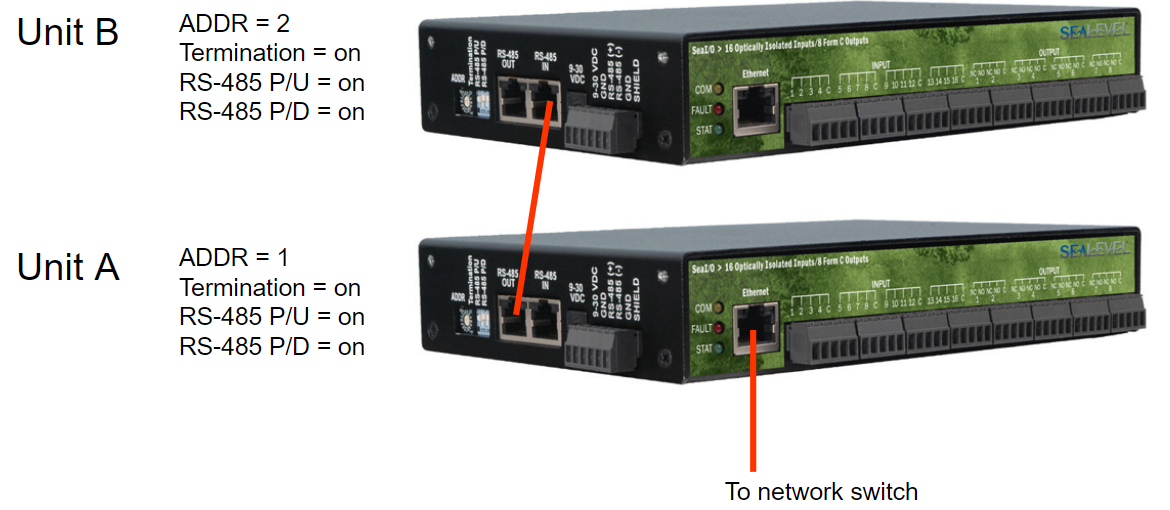

The Wash World Apex requires two Sealevel devices.  The Sealevels will be referred to as Sealevel A and Sealevel B.

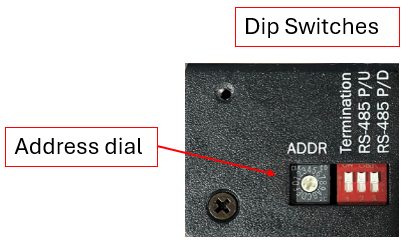

Sealevel A will be directly connected to the network with a standard network configuration and the address (ADDR) dial on the side of the Sealevel set to 1.  Sealevel B will be connected to Sealevel A via an RS-485 connection and the Sealevel B address will be set to 2.


The dip switches will be on for both Sealevels.

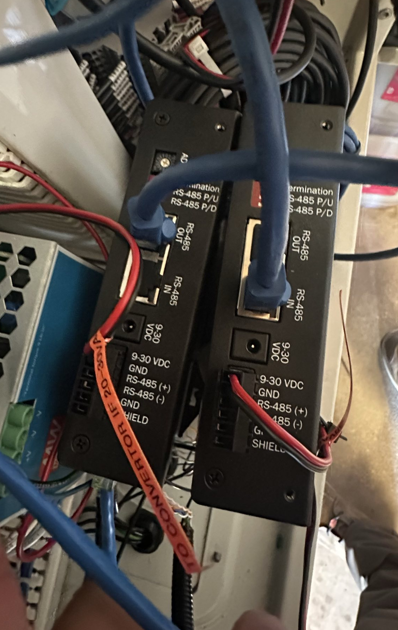

Both units are powered independently per standard power setup.






Sealevel A - I/O wiring interface

You must set the Apex for DC signaling to the Sealevel inputs (or convert AC signals to DC via a relay).

SEALEVEL A - INPUTS

TERMINALFROM APEX

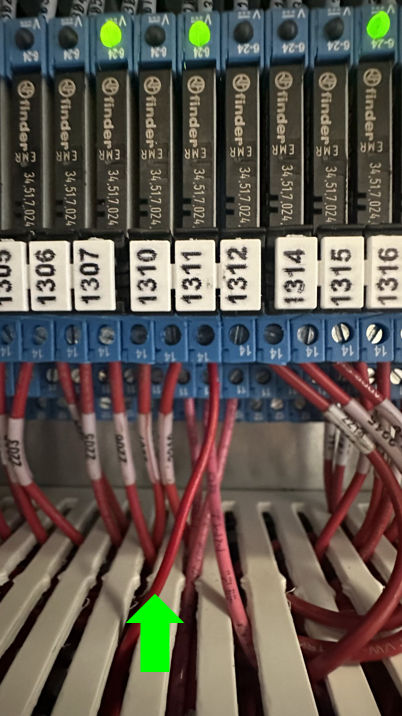

1 – Wash Status

1

1311

2 – Gate loop signal (if used)

2

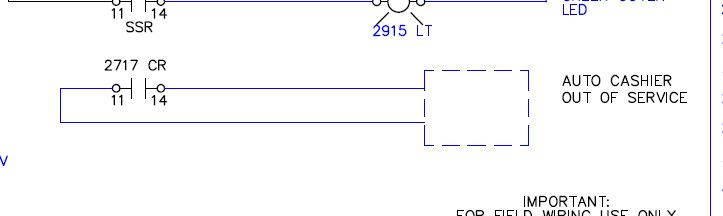

3 – Out of Service

3

2717

4 – n/a

4

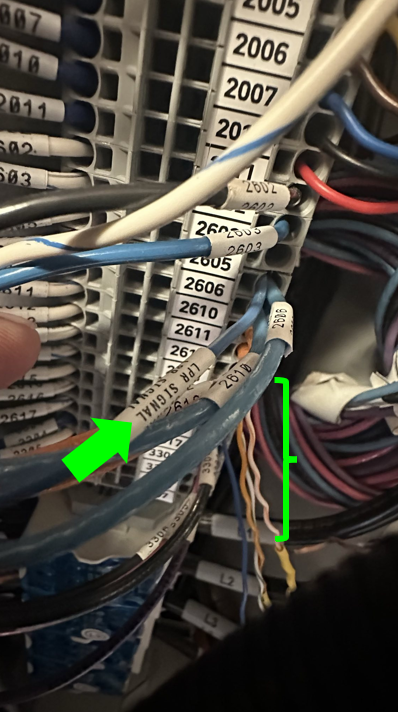

5 – Photo Eye

5

2606 (UB photo eye)

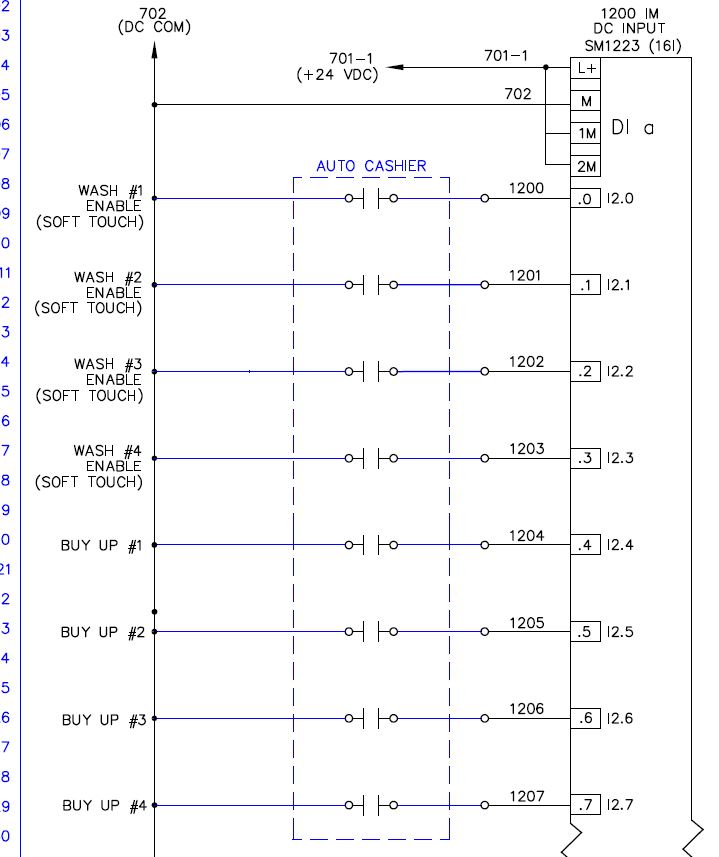

SEALEVEL A - OUTPUTS

TERMINALTO APEX

1

1 N.O.

1200 (Soft Touch Bronze)

2

2 N.O.

1201 (Soft Touch Silver)

3

3 N.O.

1202 (Soft Touch Gold)

4

4 N.O.

1203 (Soft Touch Platinum)

5

5 N.O.

1204 (Buy Up #1)

6

6 N.O.

1205 (Buy Up #2)

7

7 N.O.

1206 (Buy Up #3)

8

8 N.O.

1207 (Buy Up #4)

Notes (Sealevel A):

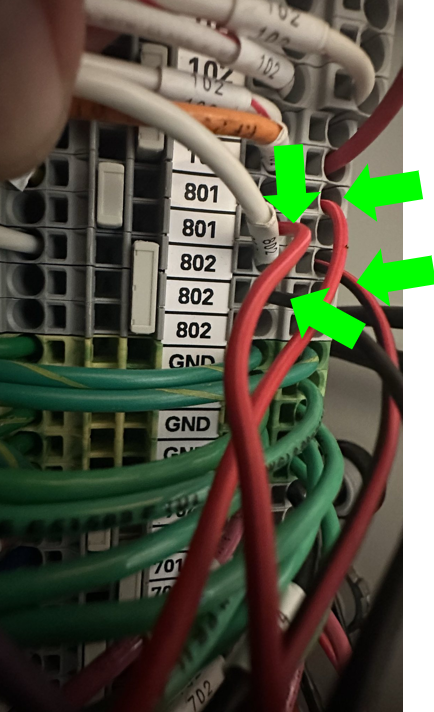

1) Connect the 24VDC Negative from 802 to the Sealevel power input on the left side power block on the rear GND and to the common terminal on the first and second input blocks on the front of the Sealevel.
2) Connect the 24VDC Positive from 801 to the Sealevel power input on the left side power block in the 9-30 VDC.  Also connect 24VDC Positive to wash output block commons.
3) Connect “Wash Status” signal wire to the signal (coil) side of the relay.
4) Set Dencar Customer Management Portal Sealevel to 2-wire out of service signaling.
5) Set Dencar Customer Management Portal Sealevel "Touch Mode Config" to "Wash World Apex" exactly as written.
6) On the Apex controller, set the wash status signaling to “Wash Done” signaling.

Sealevel B - I/O wiring interface

SEALEVEL B - INPUTS

TERMINALFROM APEX
Sealevel B Inputs are not used

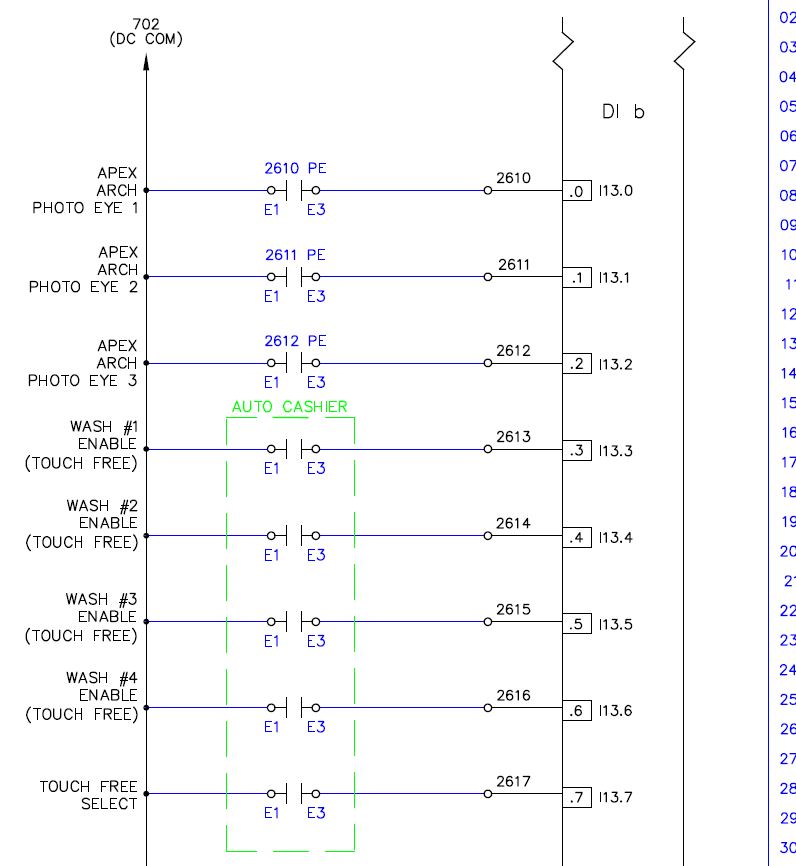

SEALEVEL B - OUTPUTS

TERMINALTO APEX

1

1 N.O.

2613 (Touch Free Bronze)

2

2 N.O.

2614 (Touch Free Silver)

3

3 N.O.

2615 (Touch Free Gold)

4

4 N.O.

2616 (Touch Free Platinum)

5

5 N.O.

N/A

6

6 N.O.

N/A

7

7 N.O.

N/A

8

8 N.O.

N/A

Notes (Sealevel B):

1) Connect the 24VDC Negative from 802 to the Sealevel power input on the left side power block on the rear GND and to the common terminal on the first and second input blocks on the front of the Sealevel. - INPUT BLOCKS NOT USED ON SEALEVEL B
2) Connect the 24VDC Positive from 801 to the Sealevel power input on the left side power block in the 9-30 VDC.  Also connect 24VDC Positive to wash output block commons.
3) Connect “Wash Status” signal wire to the signal (coil) side of the relay - NOT USED ON SEALEVEL B
4) Set Dencar Customer Management Portal Sealevel to 2-wire out of service signaling.
5) Set Dencar Customer Management Portal Sealevel "Touch Mode Config" to "Wash World Apex" exactly as written.
6) On the Apex controller, set the wash status signaling to “Wash Done” signaling.
